ホーム /製品/超音波流れのトランスデューサー/Other Ultrasonic Transducer Fish Finder 40KHz 200KHz 500KHz 1MHz Depth Sensors

Other Ultrasonic Transducer Fish Finder 40KHz 200KHz 500KHz 1MHz Depth Sensors

10 Pieces
MOQ
$95.00(>=10 Pieces)
価格
Other Ultrasonic Transducer Fish Finder 40KHz 200KHz 500KHz 1MHz Depth Sensors
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Features: other
Model Number: TA40200KD
Theory: ultrasound technology to measuring distance.
Output: analog signal
Brand: BB
Amplifier Type: none
Voltage - Supply: yes
Output Type: 100Vp-p ~1000Vp-p
Current - Supply: none
Operating Temperature: -30~80
Mounting Type: screw fixed
Resolution (Bits): other
Current - Supply (Max): other
Package / Case: other
Packaging: other
ultrasonic sensor frequency (kHz): 40KHz 200KHz
Detection distance: 100meters
Band width of ultrasonic sensors: 8kHz
Comprehensive sensitivity: -60dB min
Blind zone: <0.20meters
Transmitting beam angle: 14±2°
electrostatic capacity: 1200PF±20%
Minimum parallel impedance: 250Ω±30%
Maximum working voltage: <500V
Working temperature: -20~70℃
基本情報
Model Number: TA40200KD
お支払配送条件
Packaging Details: Different ultrasonic transducers and ultrasonic sensors use different package, support oem and special pack. carbon box
Supply Ability: 5000 Piece/Pieces per Month
製品の説明

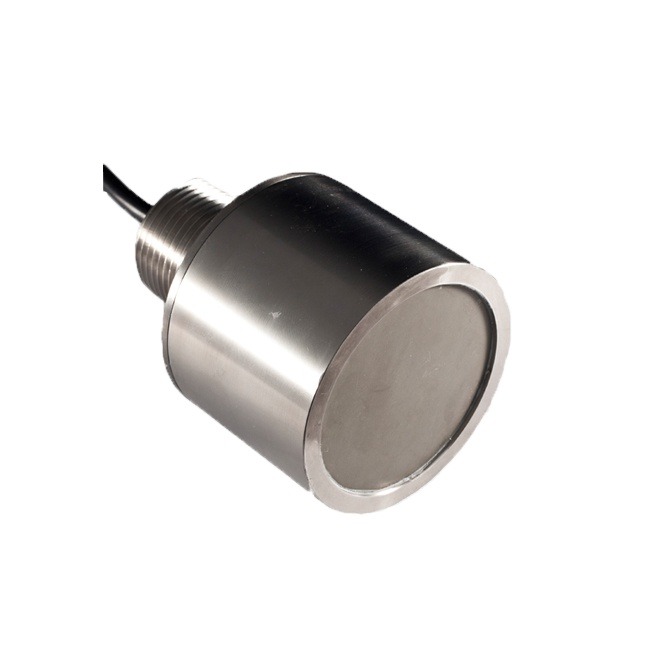

TA40200KD Ultrasonic depth Transducer
  Model TA40200KD
 » Centra Working Frequency 40Khz 200KHz
 » Bandwidth 3°
 » Measure distance 100m
 » Blind zone <15mm
 » Parallel resistance(minimun)(Ω) 60±30% Ω
 » Static capacitance(pf) 2700PF±15%
 » working voltage <200v
 » Protection Level IP67
 » Operating Temperature -20 to 70°C
 » Case Material ABS
 » IP Level IP68

 Ultrasonic Distance/Level Sensor with Digital Output  Bottom-mounted Ultrasonic Fuel Level Sensor with Digital Output  Ultrasonic Depth Transducers in Liquid


40/200Khz Ultrasonic Level transducer for level Measurement

Sensor Application

» level meter
» distance measurement

Question 1: What’s the lead-time of the ultrasonic transducer/sensors?
---[CNIRHurricane’ Answer]: Samples could be ready in 1hours -5working days normally. For big orders, please contact our sales departments.

Question 2: How can I get samples or place orders for the distance ultrasonic sensor?
--- [CNIRHurricane’ Answer]:
  1. You could place order on Alibaba directly.
  2. For some products, FREE samples are available.
  3. If any questions, contact our sales department or after services department.
Question 3: What’s the MOQ of ultrsonic distance sensor?
--- [CNIRHurricane’ Answer]:
  1. For Flow Sensors/Transducers, it works in pair normally. MOQ: 2pcs
  2. For other products, MOQ: 1pcs
  3. OEM products, MOQ is negotiable

Question 4: What’s the Warranty?
--- [CNIRHurricane’ Answer]: 12month normally. It is negotiable.

Question 5: I want to have a company/factory audit, How could I get there?
--- [CNIRHurricane’ Answer]: Welcome to visit us anytime. You could fly to Shenzhen, we will pick you up. Or Contact our sales/after services department for any assistant.

Question 6: What’s your Quality Control System?
--- [CNIRHurricane’ Answer]: Approval with ISO9001- Quality management.
